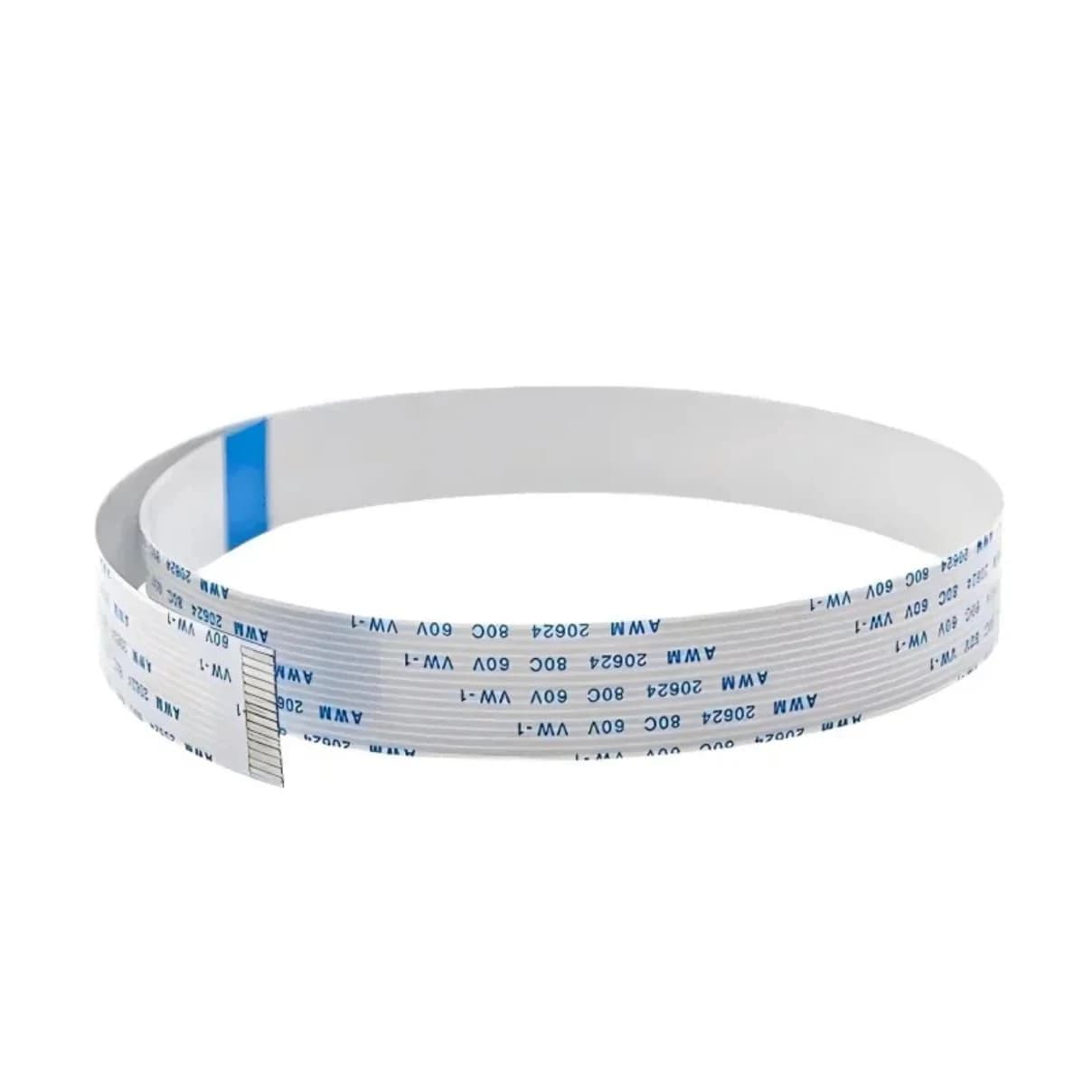

14-pin AWM 20624 flexible flat printhead cable

14-Pin FFC Cable

Spare Parts

14-Pin Printhead FFC Cable for I3200, I1600 and 4720-Compatible Systems

Name: 14-Pin Printhead FFC Cable for I3200, I1600 and 4720-Compatible Systems
Brand: OEM-Compatible

#I3200 · #I1600 · #4720

14-contact flexible printhead signal cable

Price

Request Quote

This 14-contact flexible flat cable is intended for compatible printhead and carriage-board connections. The cable carries AWM 20624, 80°C, 60V and VW-1 markings. A matching pin count alone does not prove compatibility: length, conductor pitch, cable width, exposed-contact length, same-side or opposite-side contact orientation, connector type, and electrical assignment must match the original cable.

Component: Flexible flat cable / FFC
Visible contacts: 14
Cable marking: AWM 20624
Printed rating: 80°C, 60V, VW-1
Listed systems: Selected I3200, I1600, and 4720-compatible printers
Length and pitch: Require physical confirmation
Contact orientation: Require comparison with original cable
Unit of sale: One cable unless quoted otherwise
Availability: Request Quote
Best for: Technician-confirmed printhead or carriage-board FFC replacement

Request Quote on WhatsApp Contact Form

Contacts

14-pin flexible flat cable

Marking

AWM 20624, 80°C, 60V, VW-1

Important

Length, pitch, contact orientation, and connector fit must match

Compatibility Requirements

Compare the original cable's contact count, total length, cable width, conductor pitch, and exposed-contact length.
Confirm whether contacts are on the same or opposite sides and match both connector orientations.
Confirm printer, board, and printhead revisions; do not infer compatibility from the 14-pin count alone.

Handling Guidance

Disconnect power, discharge the printer, and use electrostatic precautions before touching printhead electronics.
Insert the cable squarely with connector locks released; do not crease, sharply fold, scrape, or contaminate contacts.
Confirm orientation at both ends before power-up and replace cables with burnt, corroded, delaminated, or damaged contacts.
Installation should be performed by an experienced printer technician.

Before Ordering

Measure and record each stocked cable's length, pitch, width, contact exposure, and contact orientation.
Prepare separate SKUs if multiple cable variants are stocked and confirm whether the photographed inventory is one variant.
Do not describe the cable as universal or Epson-manufactured.

Product FAQ

Is every 14-pin printhead cable interchangeable?

No. Length, pitch, width, contact exposure, contact orientation, connector, and electrical assignment must match.

Is this an Epson-manufactured cable?

No manufacturer claim is made. Epson names identify selected compatibility targets only.

Can I fold the cable to fit?

Avoid sharp folds or creases because conductor damage can be hidden inside the laminate.

How do I confirm compatibility?

Provide printer and printhead models plus clear photos and measurements of both sides of the original cable.

Should a technician fit it?

Yes. Incorrect orientation or insertion can damage the cable, connector, board, or printhead.
