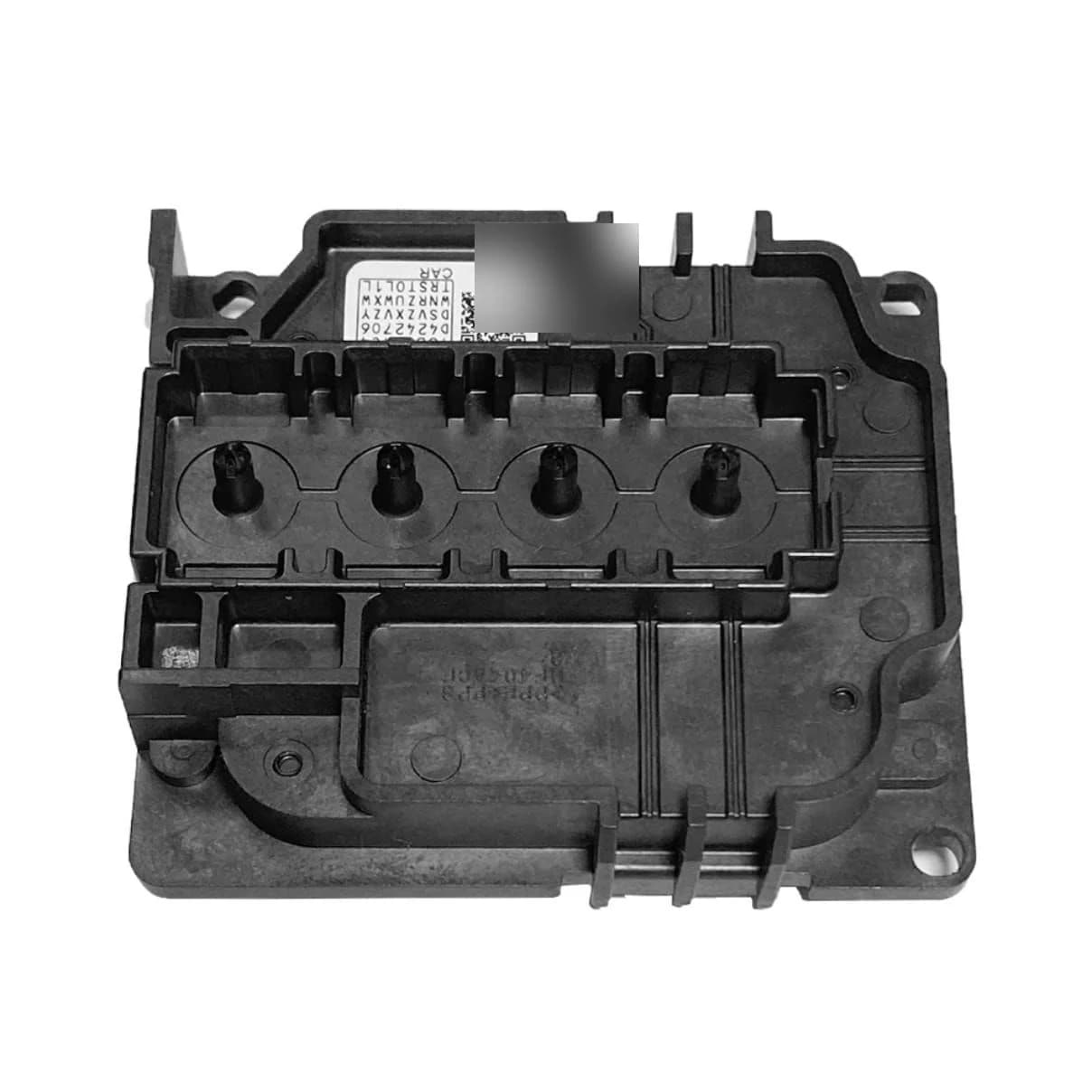

I3200-A1 four-port printhead manifold with traceability label obscured

Printhead Spare Part

Spare Parts

Epson I3200-A1 Printhead Manifold / Upper Cover Assembly

Name: Epson I3200-A1 Printhead Manifold / Upper Cover Assembly
Brand: OEM-Compatible; authenticity unverified

#I3200-A1

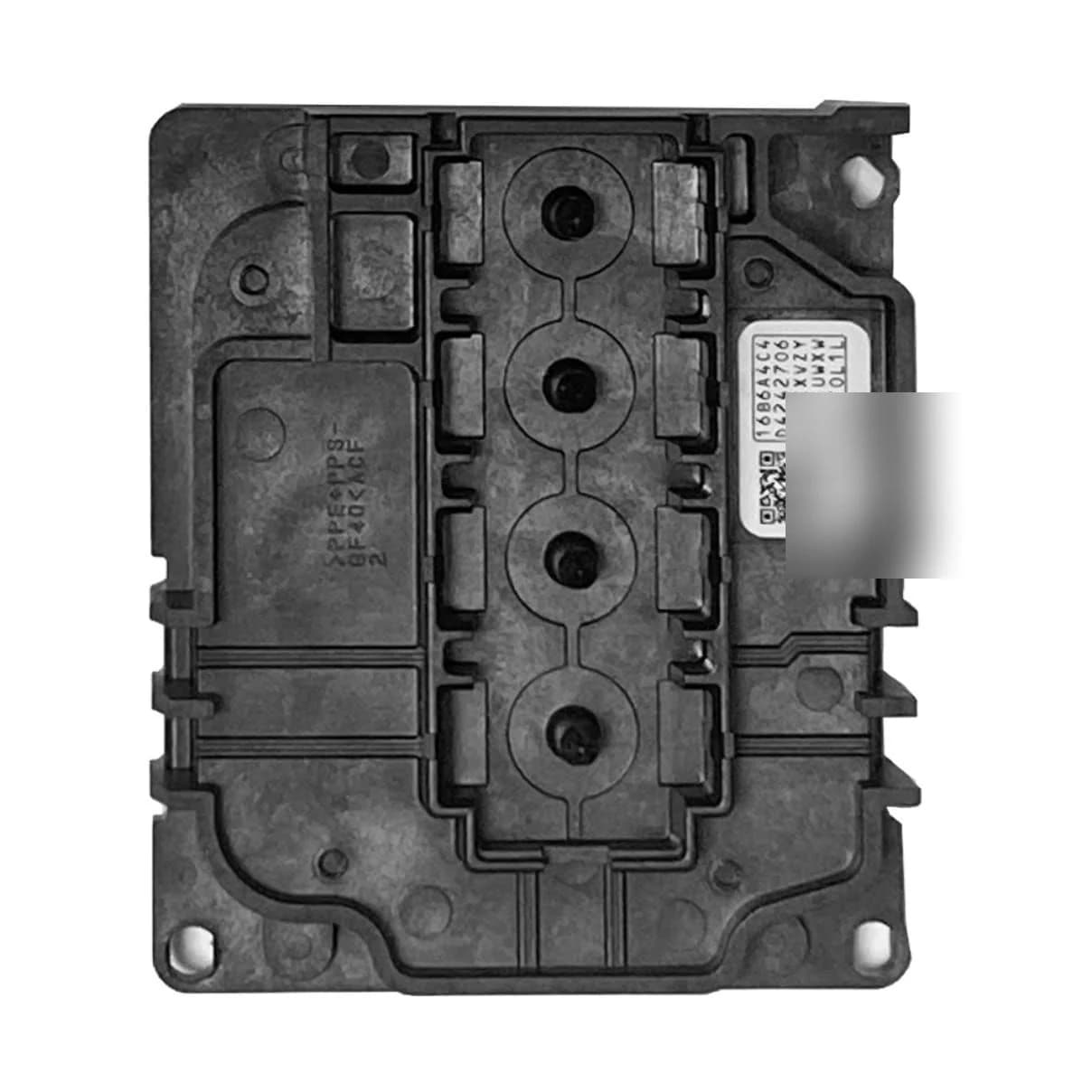

Four-port I3200-A1 manifold and upper cover assembly

Price

Request Quote

This I3200-A1 manifold is the upper fluid-distribution assembly for a compatible printhead. It connects the printer ink-delivery system to the head's internal channels and may be considered when a technician confirms damaged inlet ports, cracks, leakage, or failed seals. It is not a complete printhead and does not include the nozzle plate, electronics, or printhead body. A1, E1, U1, and other variants must not be assumed interchangeable, and the photographed underside revisions require confirmation.

Compatible family: Epson I3200
Intended model: I3200-A1
Component: Manifold / upper cover assembly
Visible ink ports: 4
Ink-system type: Aqueous or water-based
Housing: Black moulded polymer
Installation: Technician-installed replacement part
Printhead included: No
Cables included: No
Dampers, seals, screws: Not confirmed
Part number and revision: Require confirmation
Availability: Request Quote
Best for: Technician-led repair of a damaged compatible I3200-A1 manifold
Head model: Intended for compatible Epson I3200-A1 printheads

Request Quote on WhatsApp Contact Form

Component

Four-port upper manifold and fluid-distribution assembly

Application

Compatible aqueous I3200-A1 printhead servicing

Important

Exact mould, gasket pattern, and revision must be matched

Compatibility Requirements

Compare the exact printhead model and A1/E1/U1 variant.
Match ink-port positions, mounting holes, internal channels, gasket pattern, orientation, and existing revision.
Confirm printer model, ink chemistry, supplier part number, and package contents.

Handling Guidance

Installation should be completed by an experienced printhead technician.
Keep the fluid path clean and prevent dust, ink, or cleaning liquid from reaching electronics.
Replace or correctly seat compatible seals and inspect every connection for leakage before operation.

Before Ordering

Keep the public title without Original until authenticity is documented.

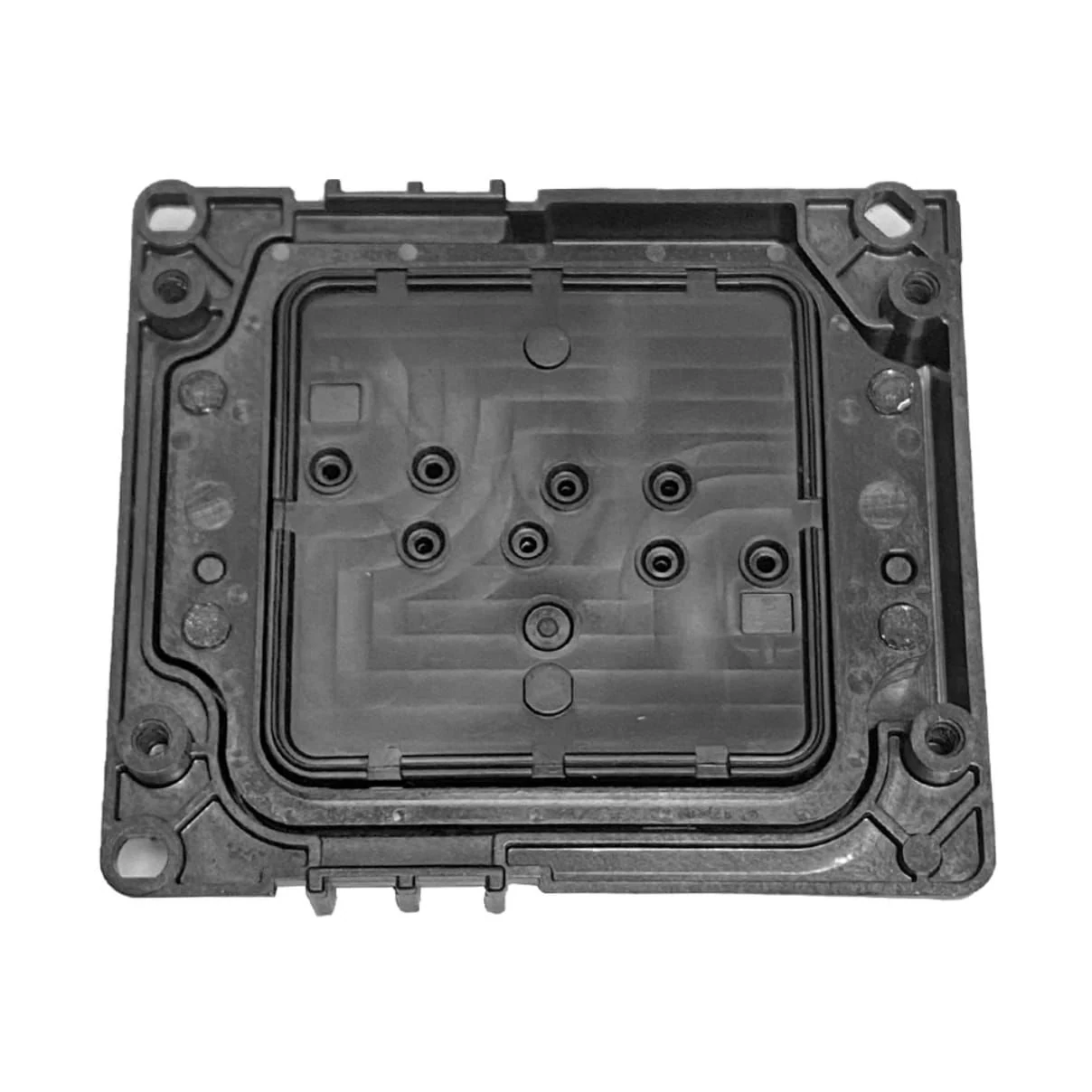

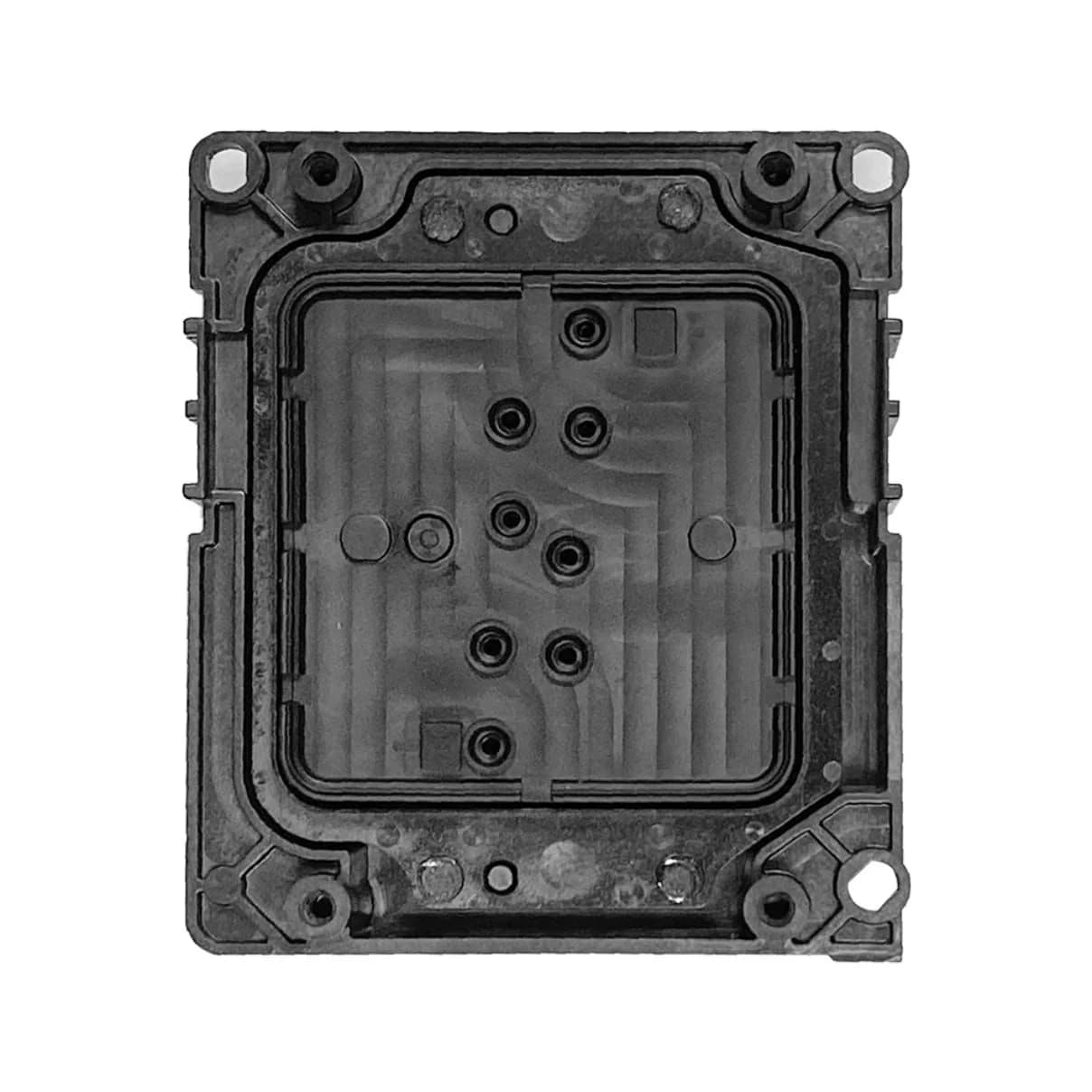

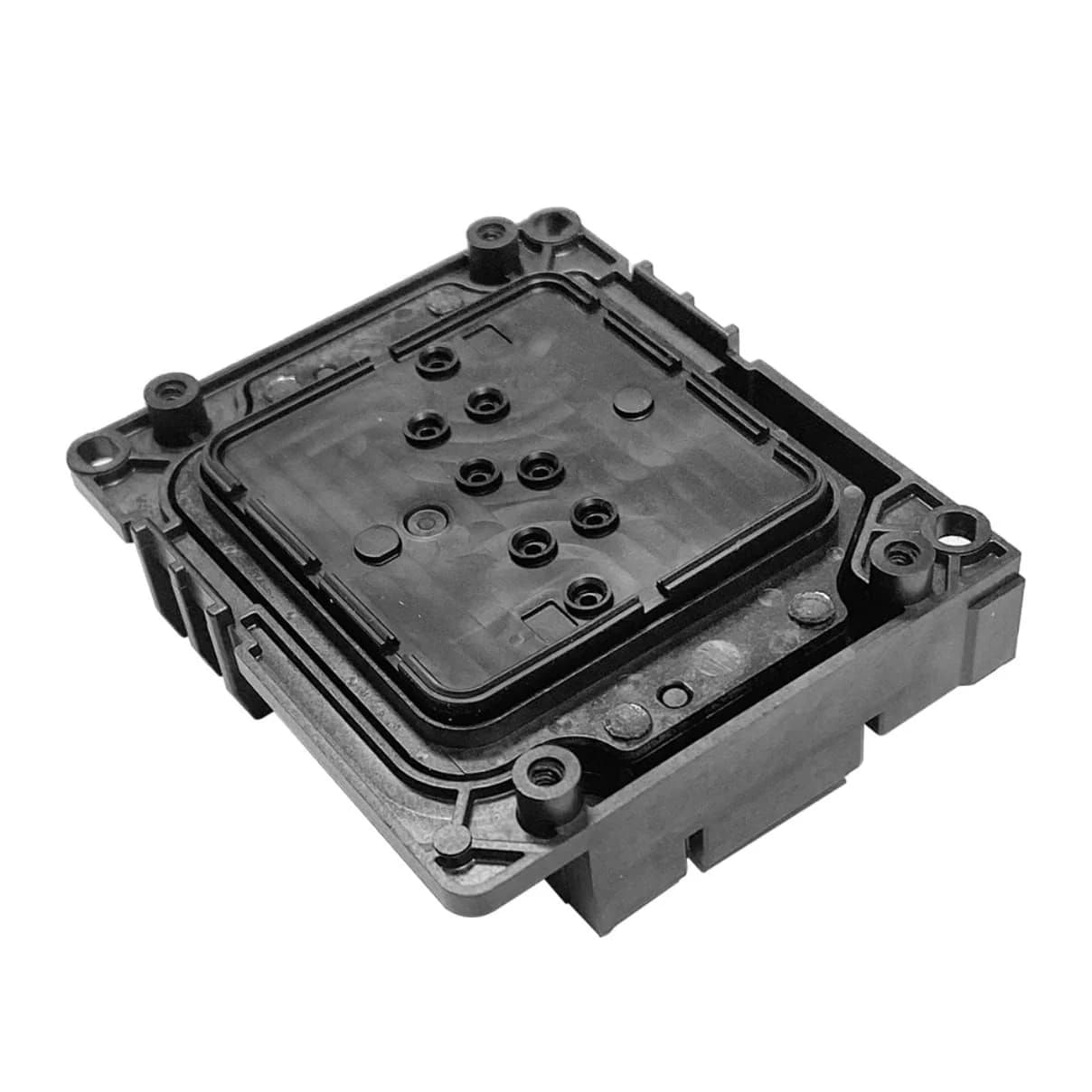

Confirm that all underside photographs represent the same hardware revision.
Confirm package contents and the exact gasket, seal, cap, screw, and manifold revision.
Unique QR, serial, and barcode labels are obscured or excluded from public images.

Product FAQ

Is this a complete Epson I3200-A1 printhead?

No. This listing is for the manifold or upper cover assembly only. The complete printhead is sold separately.

Can it replace a leaking manifold?

It may be suitable when leakage comes from a cracked housing, damaged inlet, or failed manifold seal. A technician should diagnose the head first.

Will it repair blocked or missing nozzles?

Not necessarily. Replacing the manifold does not repair nozzle-plate damage, electrical failure, or every type of blockage.

Is it compatible with I3200-E1 or I3200-U1?

Compatibility should not be assumed because the variants are intended for different ink types and may use different revisions or materials.

Is this an original Epson component?

Photographs alone cannot prove authenticity. Confirm invoices, part numbers, packaging, sourcing records, and a written authenticity guarantee.

Does it include seals and screws?

The supplied images do not confirm gaskets, O-rings, screws, caps, or other accessories. The quotation must list them explicitly.

Who should install it?

An experienced printhead technician should install it. Incorrect sealing, contamination, or alignment can cause leakage or permanent damage.
